The first ESP32 with 5 GHz Wi-Fi: Wi-Fi 6 dual-band, BLE 5, Zigbee/Thread, 8 MB flash + 8 MB PSRAM

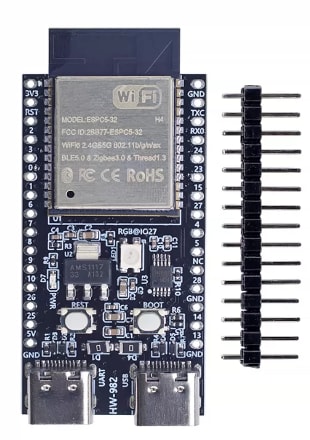

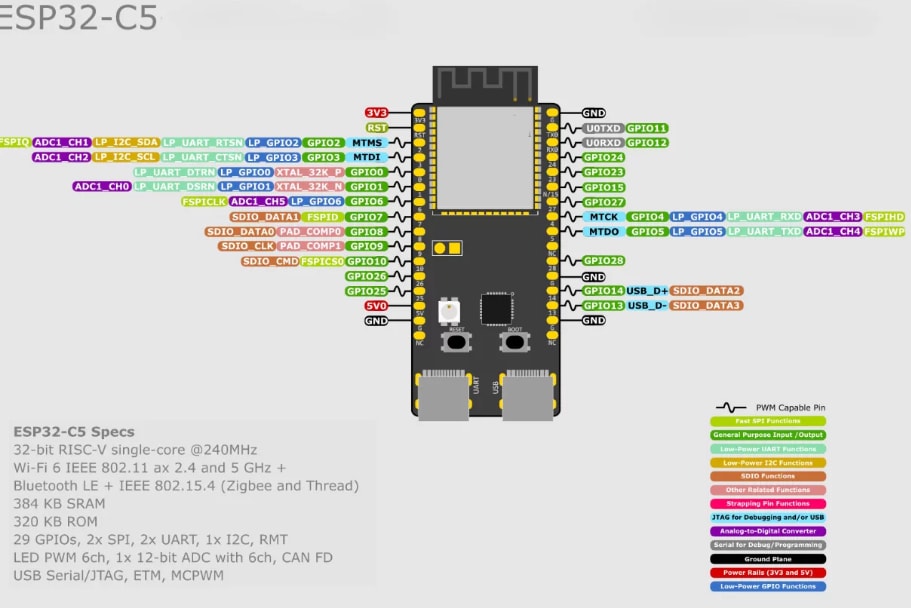

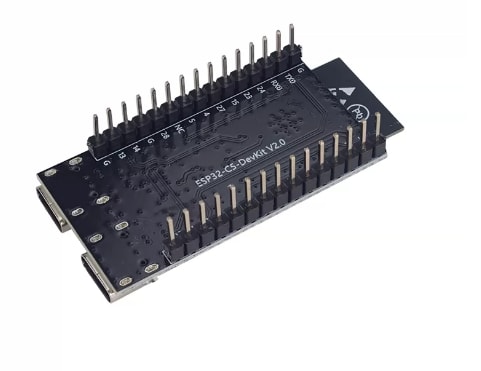

The ESP32-C5 adds what every ESP32 user asked for: 5 GHz Wi-Fi. Its single RISC-V core runs at 240 MHz with 384 KB SRAM, and the N8R8 module adds 8 MB of flash and 8 MB of PSRAM for image buffers and TLS stacks. Radios: Wi-Fi 6 (802.11ax) on 2.4 and 5 GHz, Bluetooth LE 5 and IEEE 802.15.4 for Zigbee / Thread. Peripherals include 2 × SPI, 2 × UART, I2C, RMT, 6-channel LED PWM, 12-bit ADC (6 channels), CAN FD and USB Serial/JTAG. The board follows the DevKitC-1 layout with two USB-C ports (UART bridge and native USB), an addressable RGB LED and all pins on 2.54 mm rows. Headers are supplied loose. Supported by ESP-IDF 5.x.
