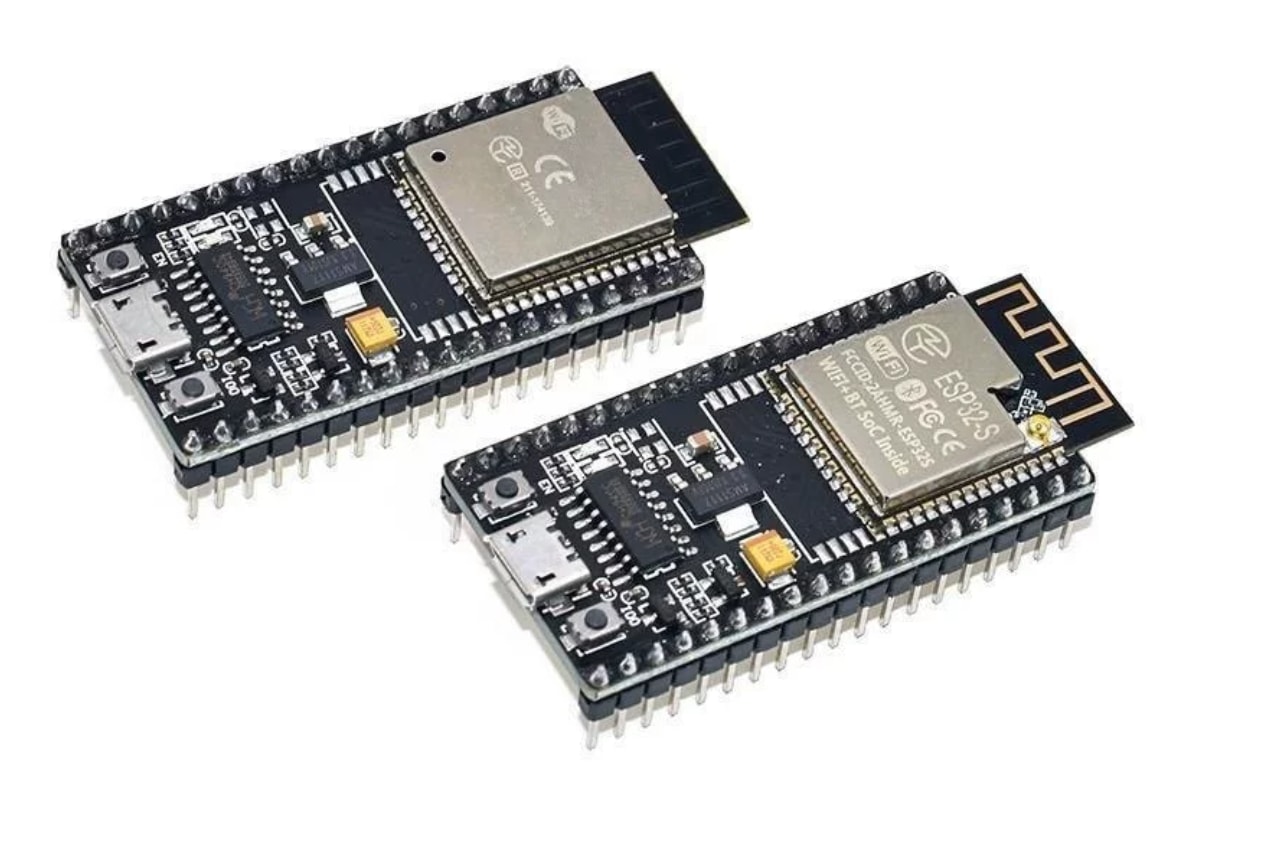

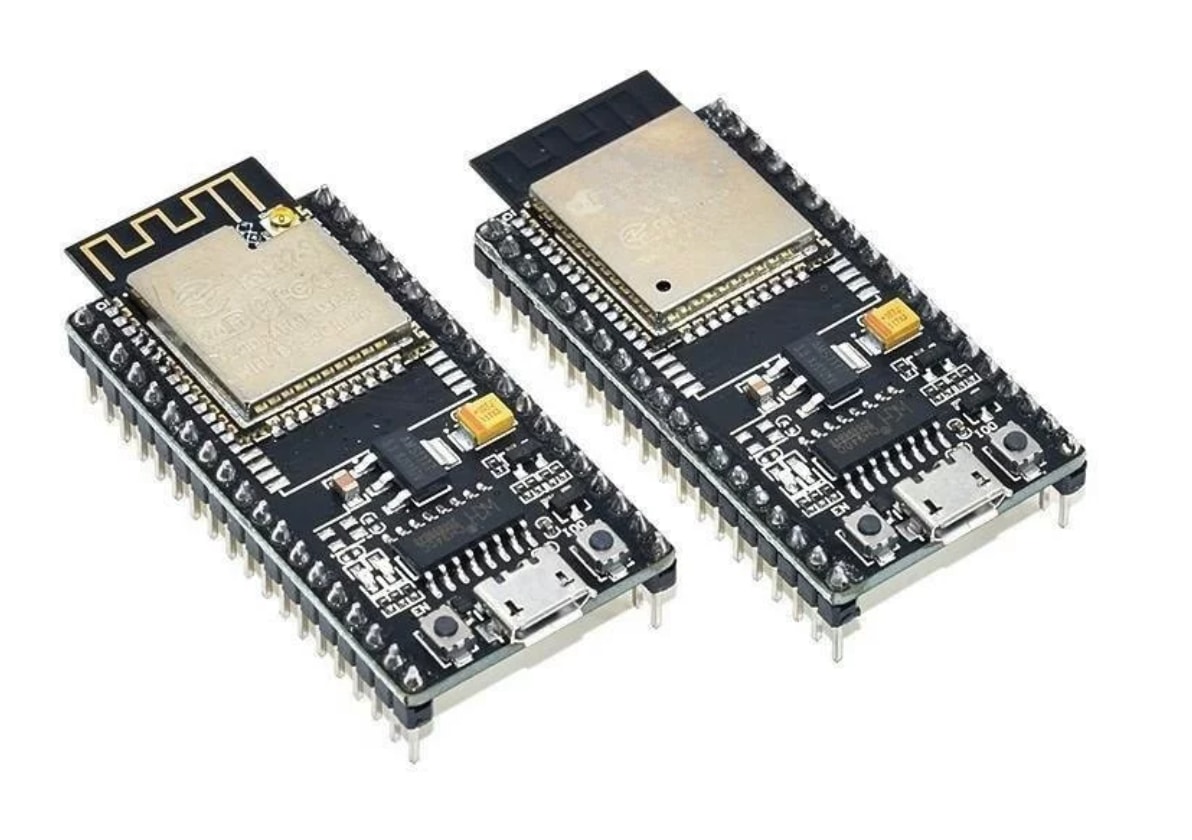

ESP32 NodeMCU Development Board

The classic 38-pin ESP32 board — dual-core, Wi-Fi + Bluetooth, breadboard ready

● In stock
€9.90

About

The ESP32 took over the maker world for a reason: two 240 MHz cores, Wi-Fi, Bluetooth (Classic and Low Energy), and a generous set of peripherals — capacitive touch pins, 12-bit ADC, DAC, SPI, I2C, I2S and PWM on almost every pin. This NodeMCU-style board brings all of it to a breadboard-friendly 38-pin package with a micro-USB port, EN/BOOT buttons and an on-board 3.3 V regulator. It is the board most ESP32 tutorials assume, so examples and libraries just work. Also available with the ESP-32E module or with a u.FL connector for an external antenna (ESP-32UE) — ask if you need those versions.

Features

  • ESP-32S module: dual-core 240 MHz, 520 KB SRAM, 4 MB flash
  • 2.4 GHz Wi-Fi + Bluetooth Classic and LE
  • 38-pin breadboard-friendly layout
  • Micro-USB with on-board USB-serial — flash directly from the IDE
  • Touch pins, 12-bit ADC, DAC, SPI, I2C, I2S, PWM
  • Works with Arduino IDE, MicroPython, ESPHome, ESP-IDF
  • EN + BOOT buttons, on-board 3.3 V regulator

Specifications

USBmicro-USB, on-board USB-serial chip
Pins38, 2.54 mm pitch
Power5 V USB or VIN, 3.3 V logic
Memory520 KB SRAM, 4 MB flash
ModuleESP-32S (ESP32 dual-core Xtensa LX6, 240 MHz)
VariantsESP-32E and ESP-32UE (external antenna) on request
WirelessWi-Fi 2.4 GHz b/g/n + Bluetooth 4.2 (Classic + LE)
