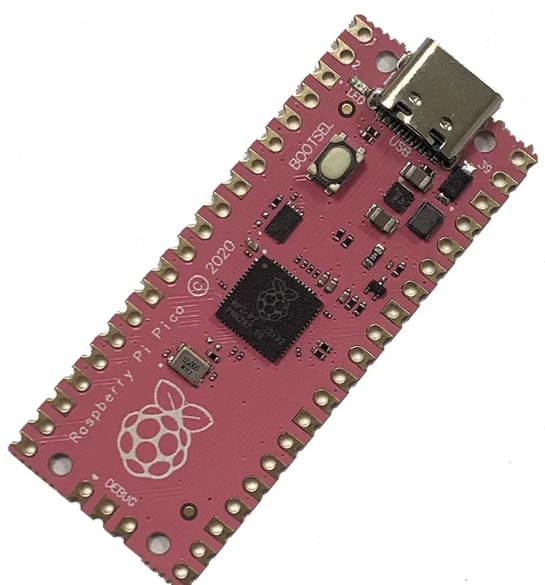

RP2040 Pico Board, USB-C (pink) – headers included

Pico-compatible RP2040 board with a USB-C port and loose pin headers

● In stock
€6.90

About

The RP2040 is the easiest way into a fast, cheap microcontroller: plug it in while holding BOOTSEL, drop a UF2 file on the USB drive that appears, done. This board is pin-for-pin compatible with the Raspberry Pi Pico – 40 pins, 26 GPIO, three ADC inputs, PIO state machines, USB – but with a USB-C socket. Program it with MicroPython, CircuitPython, the C/C++ SDK or the Arduino IDE. Pink PCB, headers supplied loose. A green version with pre-soldered headers and a USB-C cable is listed separately.

Features

  • RP2040: dual-core ARM Cortex-M0+ @ 133 MHz
  • 264 KB SRAM, 2 MB flash
  • USB-C connector (drag-and-drop UF2 programming)

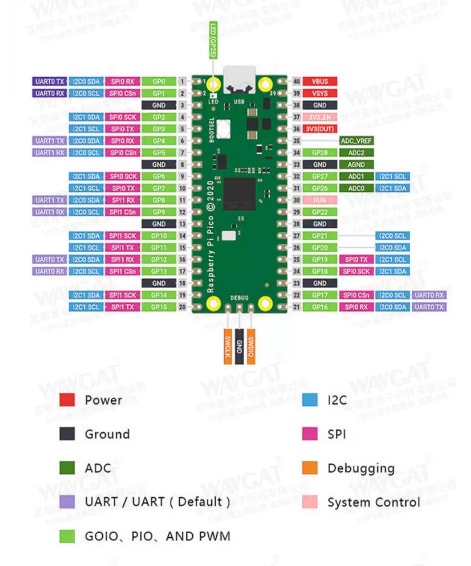

  • 26 GPIO, 3 × 12-bit ADC, PWM, 2 × UART, 2 × SPI, 2 × I2C, PIO
  • Same pinout and size as the Raspberry Pi Pico (51 × 21 mm)
  • MicroPython, CircuitPython, C/C++ SDK, Arduino

Specifications

USBUSB-C
ChipRP2040, 2 × Cortex-M0+ @ 133 MHz
GPIO26 (3 analogue, 12-bit ADC)

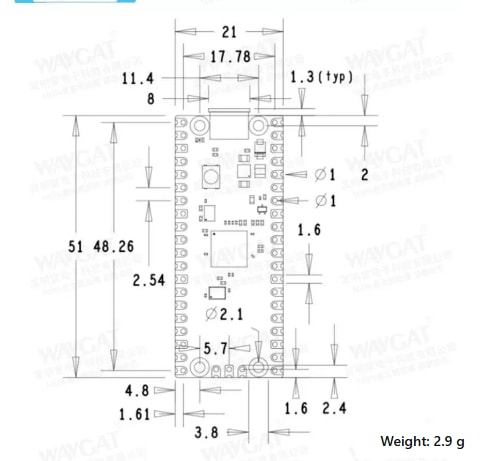

Size51 × 21 mm, 40 pins
PowerUSB 5 V or VSYS 1.8–5.5 V, 3.3 V logic
Memory264 KB SRAM, 2 MB QSPI flash
