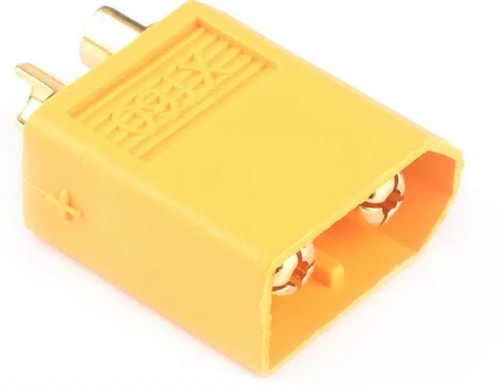

The standard LiPo battery connector – one male and one female, 12 AWG rated
The XT60 is the connector for anything that runs on LiPo packs: drones, RC cars, e-bikes, power tools, bench supplies. The gold-plated contacts have a contact resistance of about 0.55 mΩ and take 30 A continuously (short peaks much higher); the yellow nylon housing is flame-rated UL94 V-0 and keyed so it cannot be plugged in backwards. Solder cups for 12 AWG (up to ~3.3 mm²) wire. Each unit is one male plus one female connector.
