ESP32-S3 Development Board

Dual-core 240 MHz, Wi-Fi + Bluetooth 5 LE, 16 MB flash / 8 MB PSRAM — with dual USB-C and antenna connector

● In stock
€14.90

About

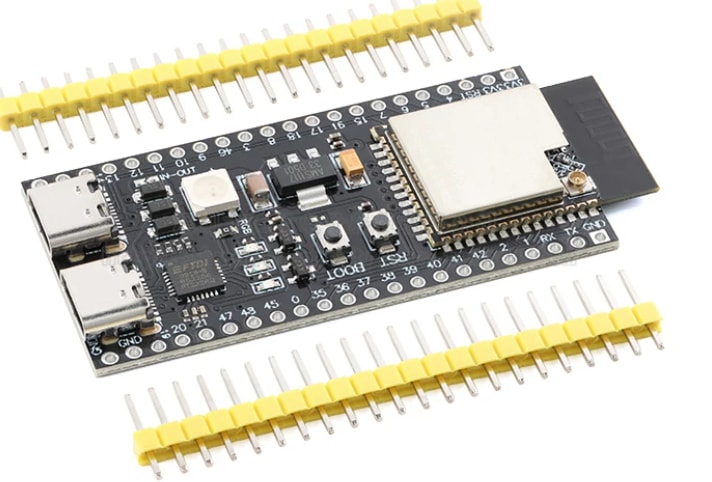

The ESP32-S3 is the board to reach for when a plain ESP32 runs out of steam: twice the usable GPIO (up to 45), native USB 2.0 with OTG, 14 ADC channels, and DSP/vector instructions that make it a favourite for voice assistants and AI projects. This N16R8 version carries the largest memory configuration — 16 MB flash plus 8 MB PSRAM — enough for camera work, audio processing, colour displays and MicroPython with room to spare. The board has two USB-C ports (one native USB, one via the UART bridge, so you can debug and flash at the same time), BOOT and RESET buttons, an addressable RGB LED, and a u.FL connector for an external Wi-Fi antenna. Header pins ship loose so you can mount them in the direction your project needs — or solder wires directly.

Features

  • ESP32-S3 dual-core Xtensa LX7 @ 240 MHz, AI/DSP vector instructions
  • 16 MB flash + 8 MB PSRAM (N16R8)
  • 2.4 GHz Wi-Fi (802.11 b/g/n) + Bluetooth 5 LE
  • Dual USB-C: native USB 2.0 OTG + UART bridge
  • Up to 45 GPIO, 14 × 12-bit ADC, 3 × UART, SPI / I2C / I2S / PWM
  • u.FL connector for external antenna
  • Addressable RGB LED, BOOT + RESET buttons
  • Pin headers included (unsoldered) — breadboard friendly

Specifications

USB2 × USB-C (native USB OTG + UART)
ChipESP32-S3 (dual-core Xtensa LX7, 240 MHz)
GPIOup to 45 pins, 14 × 12-bit ADC channels

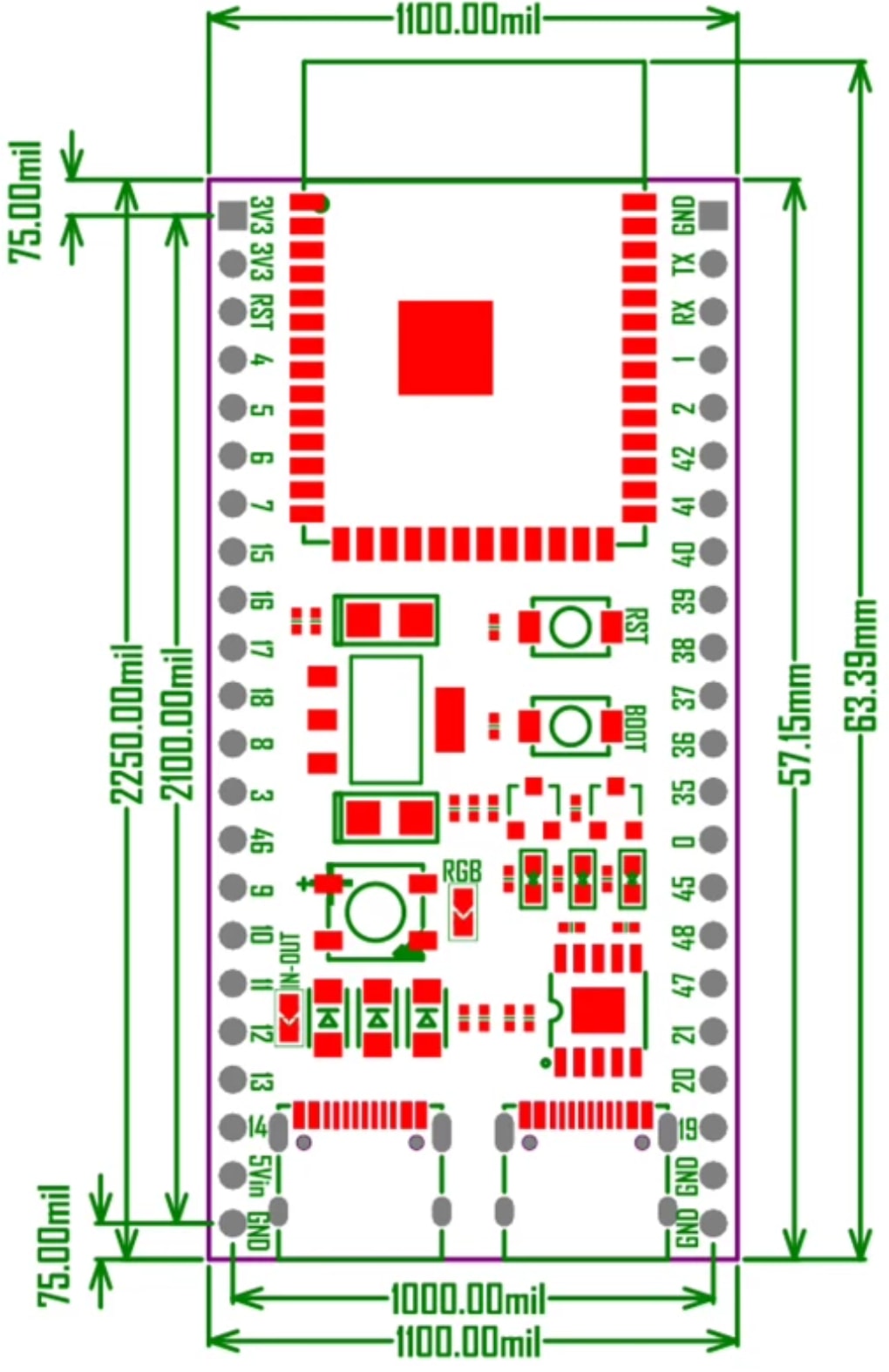

Size63 × 28 mm (44-pin, 2.54 mm pitch)
Power5 V via USB-C or 3.3 V pin, on-board LDO
Memory512 KB SRAM + 8 MB PSRAM, 16 MB flash
Antennaon-board + u.FL for external antenna
WirelessWi-Fi 2.4 GHz b/g/n, Bluetooth 5 LE
