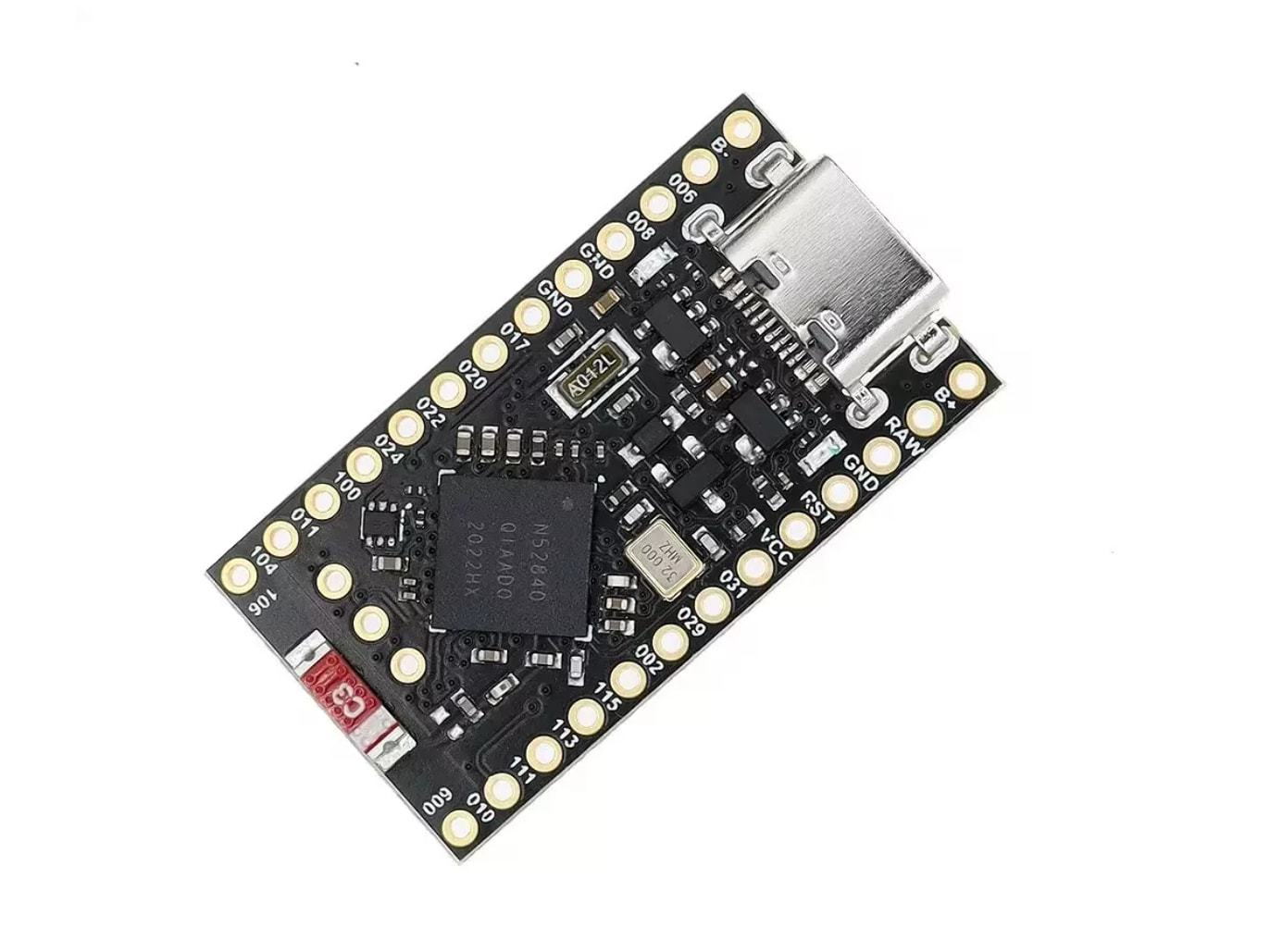

nRF52840 Pro Micro Board

nice!nano v2-compatible Bluetooth board with battery charging — the go-to controller for wireless keyboards

● In stock
€12.90

About

The nRF52840 is Nordic's flagship BLE chip: ARM Cortex-M4F at 64 MHz, 1 MB flash, 256 KB RAM, Bluetooth 5 LE and NFC, with sleep currents around 20 µA — a keyboard build runs for months on a small battery. This board puts the chip in the classic Pro Micro footprint with the nice!nano v2.0 pinout, so it drops straight into ZMK keyboard PCBs and cases designed for the nice!nano. USB-C handles both data and battery charging (4.2 V Li-Po, charge management on board), and the B+ / B− pads take the battery leads. The UF2 bootloader means firmware is flashed by dragging a file onto a USB drive — no programmer, no drivers. Pin headers ship loose (mill-max friendly holes), and the board also works with Arduino, CircuitPython and the Nordic SDK.

Features

  • Nordic nRF52840 — Cortex-M4F 64 MHz, 1 MB flash, 256 KB RAM
  • Bluetooth 5 LE + NFC
  • nice!nano v2.0-compatible pinout — works with ZMK keyboard builds
  • USB-C with on-board Li-Po charging (B+ / B− battery pads)
  • ~20 µA deep sleep — months of battery life in a keyboard
  • UF2 bootloader: flash firmware by drag & drop
  • 21 GPIO, 3.3 V logic, 32.768 kHz RTC crystal

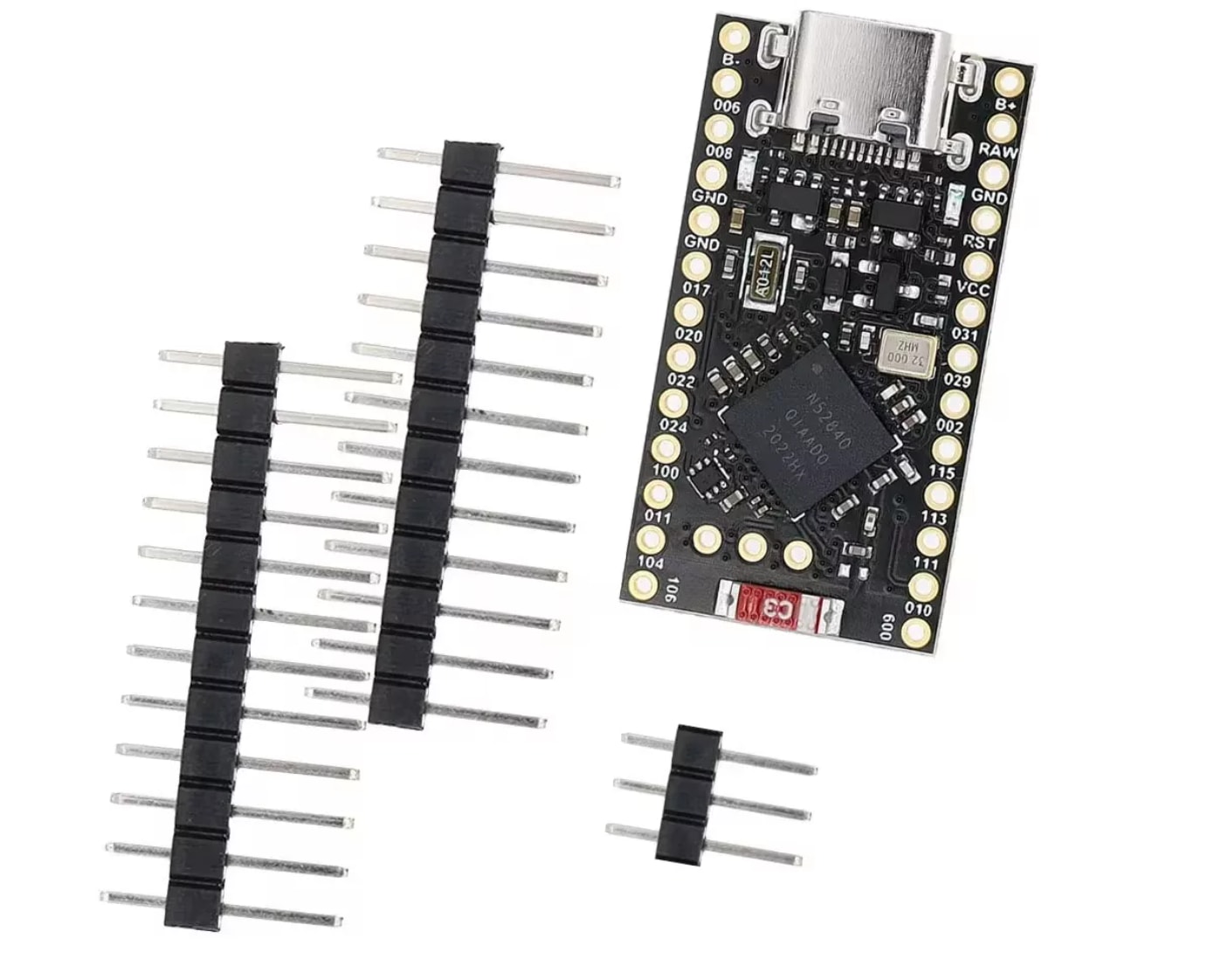

  • Pin headers included (unsoldered)

Specifications

USBUSB-C, data + 4.2 V Li-Po charging
ChipNordic nRF52840, ARM Cortex-M4F @ 64 MHz
GPIO21 multi-function pins, 6 × 12-bit ADC

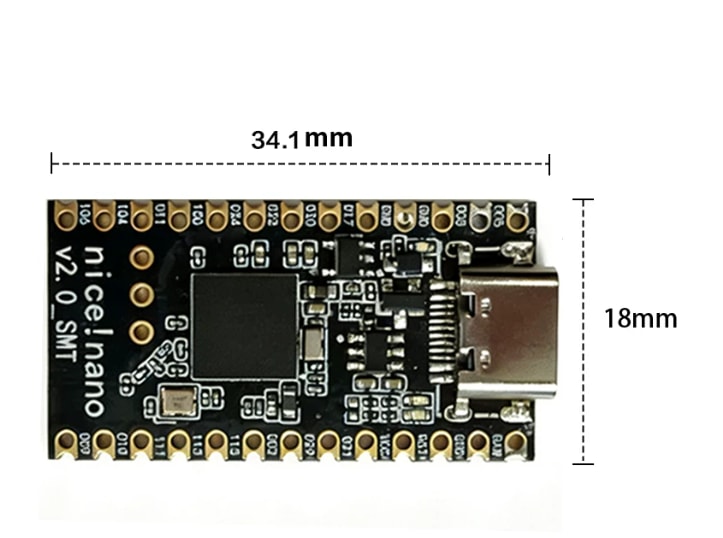

Size34.1 × 18 × 3.2 mm (Pro Micro footprint)
Memory1 MB flash, 256 KB RAM
FirmwareZMK, Arduino, CircuitPython, Nordic SDK (UF2 bootloader)
WirelessBluetooth 5.0 / BLE, NFC
Logic level3.3 V
Sleep current≈ 20 µA (deep sleep)
