ST-LINK V2 Programmer / Debugger (USB stick)
SWD programmer and debugger for STM32 and STM8 – with 4 jumper wires
● In stock
€5.90
About

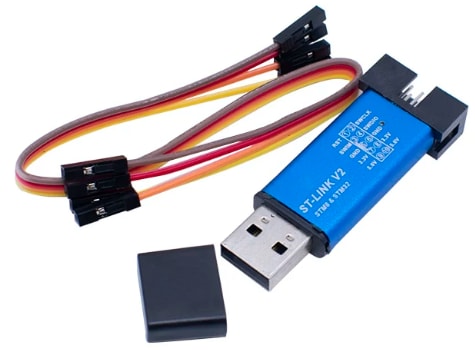

The cheapest way to flash and single-step an STM32: this USB-stick ST-LINK V2 connects to the SWD header of a Blue Pill or any STM32 board with four wires (3.3 V, GND, SWDIO, SWCLK) and provides programming and full debugging through the ST-LINK driver. It also supports STM8 over SWIM and can power the target with 3.3 V. Works with STM32CubeProgrammer / CubeIDE, Keil, IAR, PlatformIO and OpenOCD. The metal shell has a pin map printed on it. Four 20 cm jumper wires included; the plastic end cap colour is random.
Features
- Programs and debugs STM32 (SWD) and STM8 (SWIM)
- Works with CubeIDE, Keil, PlatformIO, OpenOCD
- 3.3 V target supply
- Pin map printed on the shell
- 4 jumper wires included
- Colour varies
