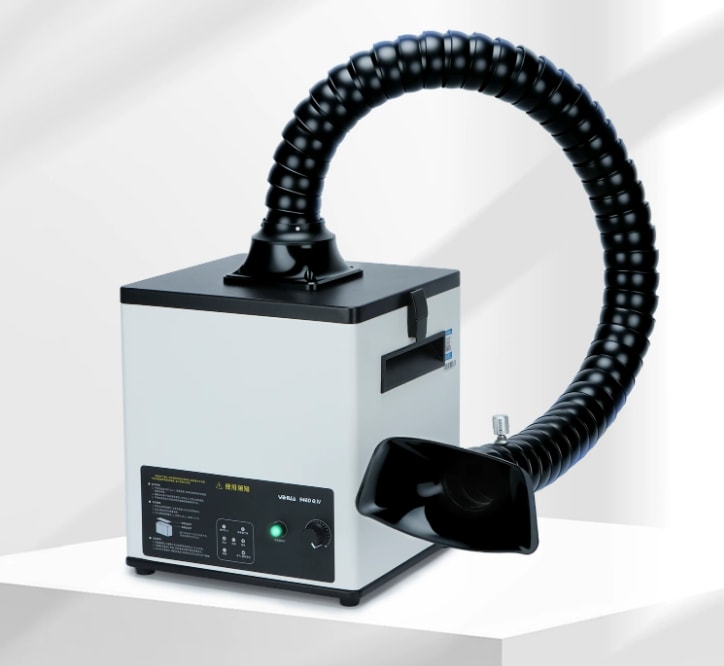

Floor-standing smoke filter with a 1 m articulated hose for soldering, laser and production work

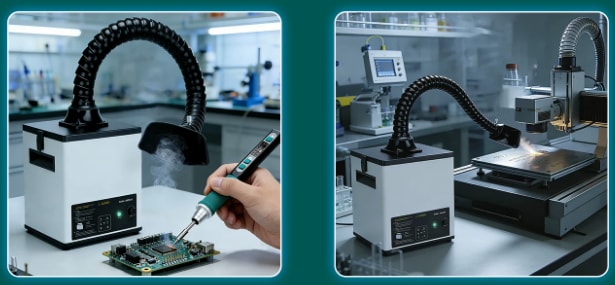

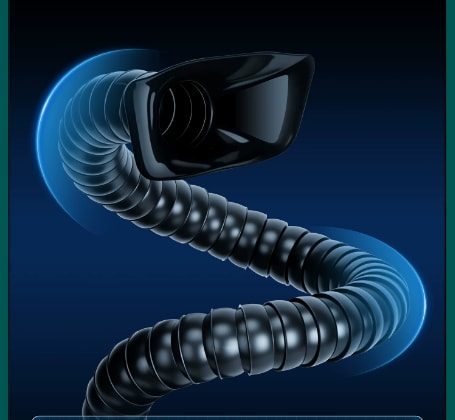

The 948DQ-IV is for workplaces where a desk absorber is not enough – long soldering sessions, laser marking, small production lines. The white steel cabinet (≈ 270 × 235 × 320 mm) houses a 120 W fan rated at 200 m³/h and a filter stack that removes 99.9 % of particles down to 0.3 µm. The 360° articulated hose (98.5 cm, Ø 7.5 cm) holds any shape and ends in an 18 × 5.8 cm hood that sits close to the work; the hose can also be used without the hood. A knob on the front sets the fan speed and an indicator shows it is running; two latches open the cabinet to change the filter. Works from 110 to 240 V, 50/60 Hz. Hand-measured dimensions, ±10 mm.
