6-gram brushless motor for 2.5" racing and micro freestyle quads — 3S–4S, 115 g+ thrust per motor

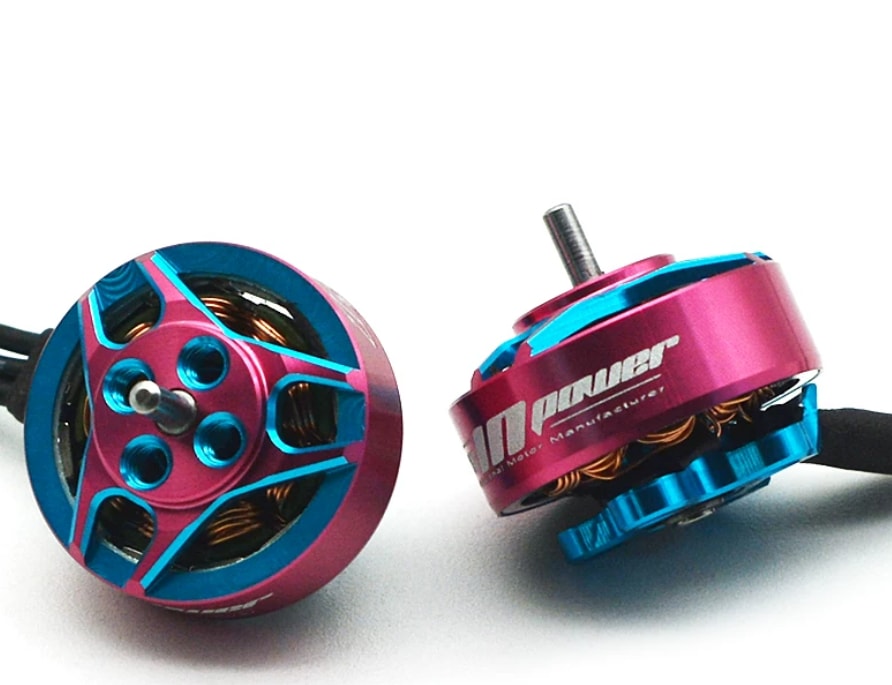

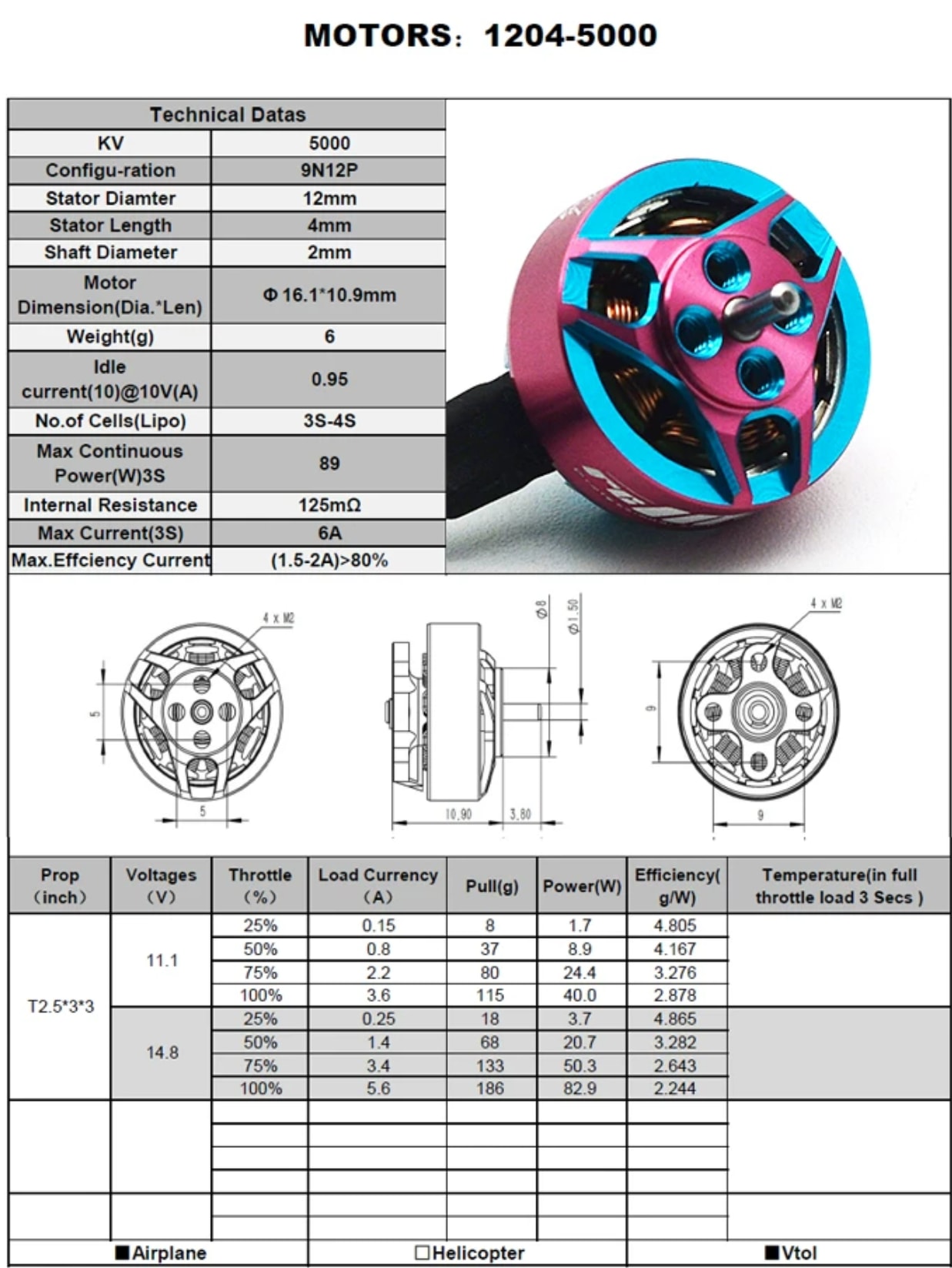

The GTS 1204 is a favourite for micro racing and freestyle builds in the 2–2.5 inch class. The 12 × 4 mm stator with 9N12P configuration and 5000KV winding is matched to 3S and 4S packs: on 11.1 V it pulls up to 115 g of thrust at 40 W, on 14.8 V up to 186 g at 83 W (measured with a T2.5×3×3 propeller). At 6 grams per motor, a four-motor set adds just 24 g to your build. The bell is CNC-machined aluminium in RCinpower's signature pink/blue, the shaft is 2 mm, and the base takes standard 4 × M2 bolts at 9 mm spacing. Sold per piece — order four for a full quad.
