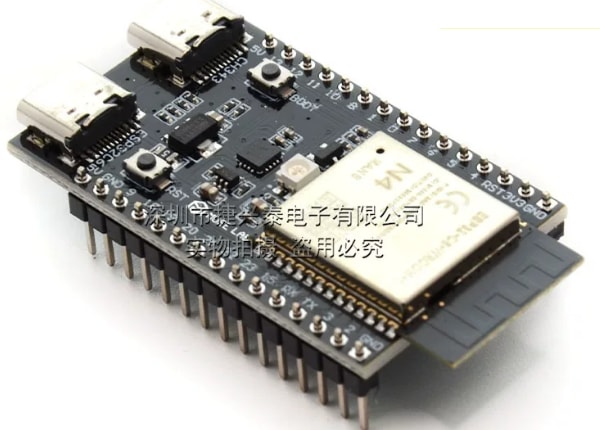

ESP32-C6-N16 dev kit with two USB-C ports – Wi-Fi 6, Bluetooth LE and 802.15.4 on one chip

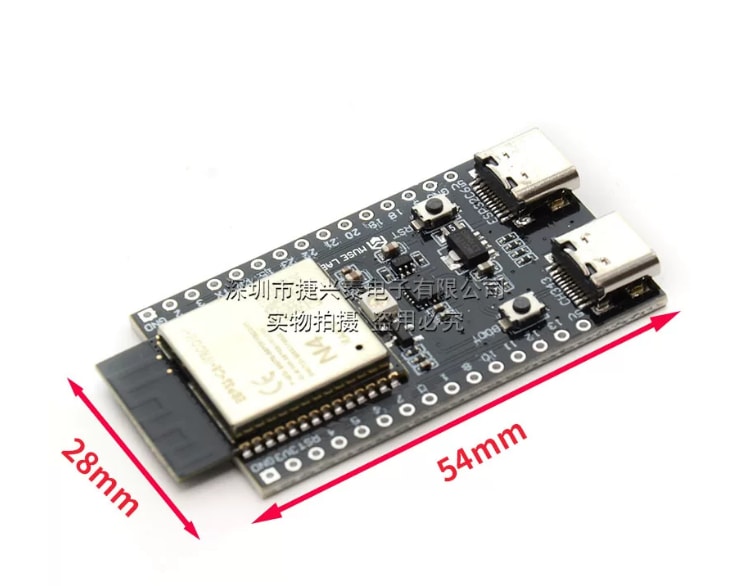

The ESP32-C6 is the first Espressif chip with Wi-Fi 6 and a Thread/Zigbee radio together, which makes it the natural choice for Matter smart-home devices and low-power sensors. This dev board has the N16 module (16 MB flash), a USB-C port on the native USB-Serial/JTAG peripheral and a second USB-C through a UART bridge, so you can flash and debug while the native USB is used by your firmware. All GPIOs are broken out on 2.54 mm rows; 3.3 V regulator on board. Works with ESP-IDF, Arduino and PlatformIO. 54 × 28 mm. Headers included (soldered or loose – state your preference when ordering).
