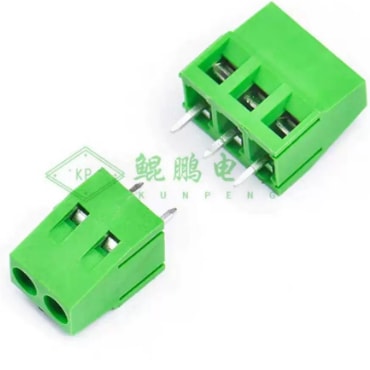

PCB Screw Terminal Block 5.08 mm, 3-pin, green (WJ500V)
Through-hole screw terminal for power and signal wires – stackable
● In stock
€0.49
About
The standard green 5.08 mm screw terminal found on power supplies, motor drivers and sensor boards. Three positions, through-hole pins on a 5.08 mm pitch, screw clamps for wires up to about 2.5 mm², rated 300 V / 16 A. The sides dovetail, so 2- and 3-pin blocks combine into any length.
Features
- 3 positions, 5.08 mm pitch
- Through-hole, side wire entry
- Interlocking – join blocks into strips
- Wires up to ≈2.5 mm²
