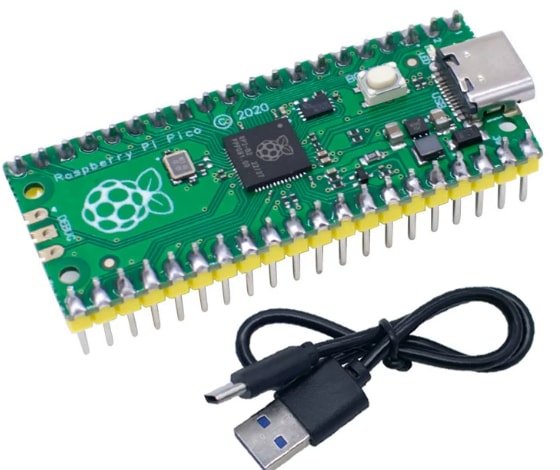

RP2040 Pico Board, USB-C (green) – headers soldered, with cable

Pico-compatible RP2040 board, ready for the breadboard, USB-C cable included

● In stock
€7.90

About

The same RP2040 board as our pink version, but ready to use: the 40 pin headers are soldered and a short USB-C data cable is included, so it goes straight onto a breadboard and into a computer. Drag-and-drop UF2 programming, MicroPython, CircuitPython, C/C++ SDK and Arduino are all supported. Green PCB, 51 × 21 mm, ≈5.8 g with headers.

Features

  • RP2040: dual-core ARM Cortex-M0+ @ 133 MHz
  • 264 KB SRAM, 2 MB flash
  • USB-C connector (drag-and-drop UF2 programming)
  • 26 GPIO, 3 × 12-bit ADC, PWM, 2 × UART, 2 × SPI, 2 × I2C, PIO

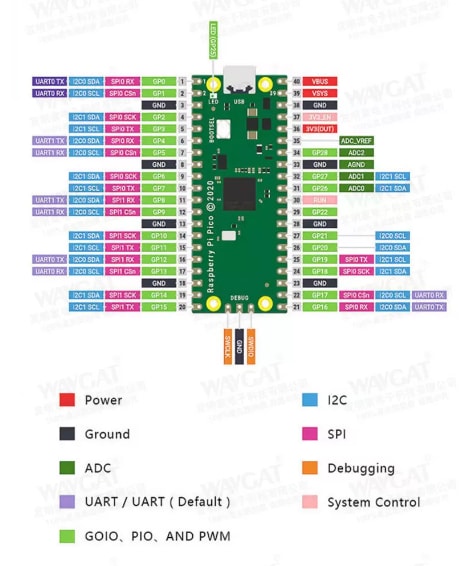

  • Same pinout and size as the Raspberry Pi Pico (51 × 21 mm)
  • MicroPython, CircuitPython, C/C++ SDK, Arduino

Specifications

USBUSB-C
ChipRP2040, 2 × Cortex-M0+ @ 133 MHz
GPIO26 (3 analogue, 12-bit ADC)
Size51 × 21 mm, 40 pins
PowerUSB 5 V or VSYS 1.8–5.5 V, 3.3 V logic
Memory264 KB SRAM, 2 MB QSPI flash
