DT 2-Pin Waterproof Connector Set

Deutsch DT04/DT06-compatible automotive connector pair — IP65, terminals included

● In stock
€3.90

About

This is the connector you find on ATVs, trucks and industrial machines: the Deutsch DT series, here as a compatible male + female set with terminals included. The silicone-sealed housings lock together with a positive click and keep water and dust out (IP65). The contacts handle 10 A at up to 22 V and temperatures to 125 °C, with 1 mm² wire. Available assembled with 15 cm pre-crimped leads or as bare housings with loose terminals for your own crimps. Need more circuits? The same series comes in 3, 4, 6, 8 and 12-pin versions — contact us and we will add them to your order.

Features

  • Deutsch DT04-2P / DT06-2S compatible
  • Male + female housing with crimp terminals
  • Waterproof to IP65, silicone seals
  • Rated 22 V / 10 A, up to 125 °C
  • Positive locking latch — no accidental unplugging

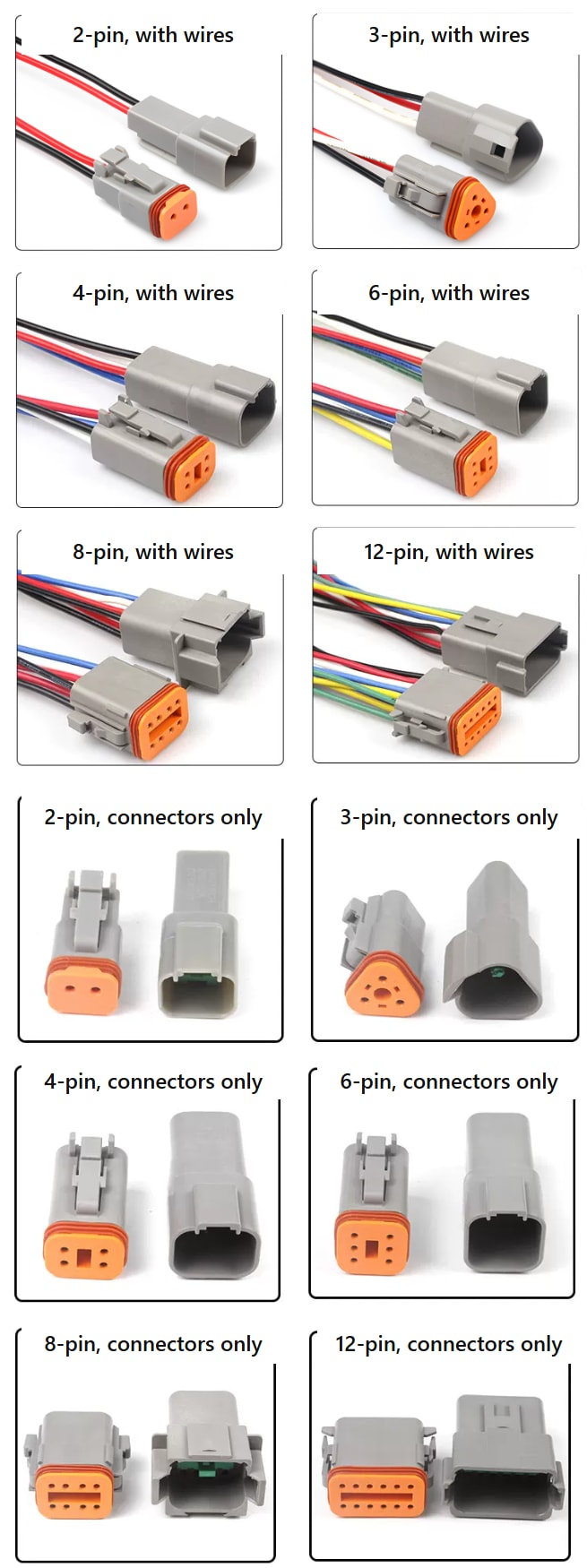

  • Also available in 3 / 4 / 6 / 8 / 12-pin versions on request

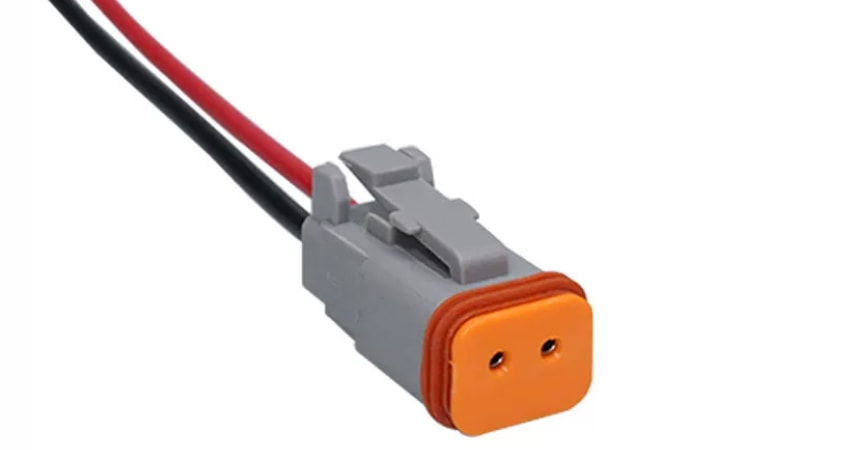

  • Pre-wired version with 15 cm leads (1 mm² wire) available

Specifications

Pins2 (3–12 pin on request)
Wire1 mm², 15 cm leads on the pre-wired version
Rating22 V / 10 A
SeriesDeutsch DT compatible (DT04 / DT06)
In the box1 × male housing, 1 × female housing, crimp terminals
Temperatureup to 125 °C
WaterproofingIP65
